Compound ccmrd_417
Compound Info
| Database id | Trival name | Linear code | Compound class | Taxonomy domain | Species |
|---|---|---|---|---|---|
| ccmrd_417 | Acetylated Galactoglucomannan | bDGlcp(1-4)[aDGalp(1-6)]bDManp(1-4)bDManp(1-4)bDGlcp(1-4)bDGlcp(1-4)[aDGalp(1-6)]bDManp(1-4)bDGlcp(1-4) | Polysaccharide | plant | Picea abies (Norway spruce) |

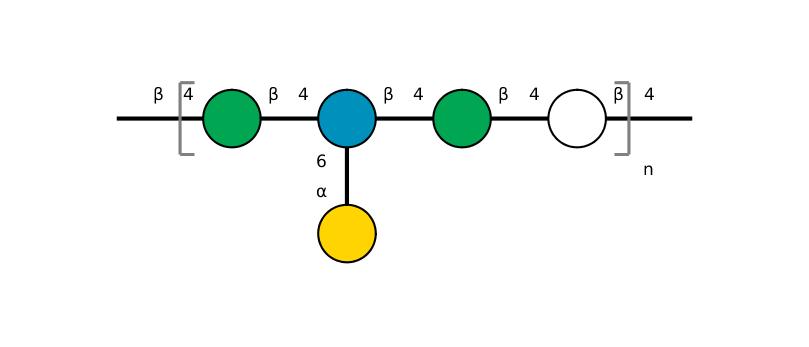

SNFG representation of Compound Symbol Nomenclature
diagram generated with DrawGlycan SNFG |
Residues
| # | Residue | Chemical Structure | Chemical Shifts (ppm) |
|---|---|---|---|
| 1 | b-D-ManpOAc |  |
C 1 : 100.9 ; C 2 : 71.9 ; C 3 : 75.9 ; C 4 : 80.4 ; C 5 : 75.8 ; C 6 : 61.6 ; |
Experiment
| Spectrometer (MHz) | Temperature (K) | pH | NMR Reference Compound | Sample treatment |
|---|---|---|---|---|
| 850 | 298 | TMS | frozen in liquid nitrogen and ground to produce a fine powder |
Reference
Oliver M. Terrett,
Jan J. Lyczakowski,
Li Yu,
Dinu Iug,
W. Trent Franks,
Steven P. Brown,
Ray Dupree & Paul Dupree,
(2019). Molecular architecture of softwood revealed by solid-state NMR,
Nature Communications,
10
(1)
,1-11
.
doi:10.1038/s41467-019-12979-9
