Compound ccmrd_20
Compound Info
| Database id | Trival name | Linear code | Compound class | Taxonomy domain | Species |
|---|---|---|---|---|---|
| ccmrd_20 | Chitin | GlcpNAc | Polysaccharide | fungi | Aspergillus fumigatus |

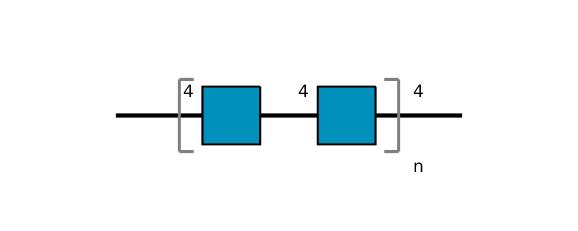

SNFG representation of Compound Symbol Nomenclature
diagram generated with DrawGlycan SNFG |
Residues
| # | Residue | Chemical Structure | Chemical Shifts (ppm) |
|---|---|---|---|

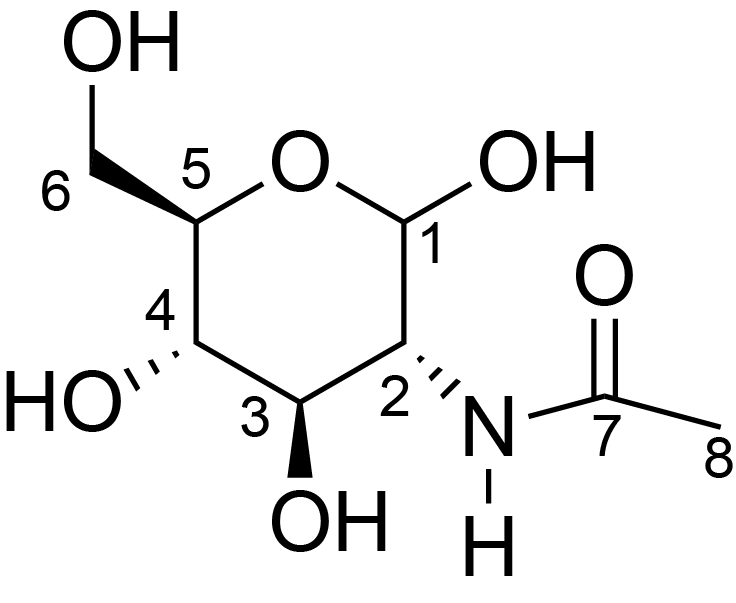

| 1 | ?-D-GlcpNAc |  |
C 1 : ; C 2 : 54.7 ; C 3 : ; C 4 : ; C 5 : ; C 6 : ; C 7 : ; C 8 : ; N 1 : 131.0 ; |
Experiment
| Spectrometer (MHz) | Temperature (K) | pH | NMR Reference Compound | Sample treatment |
|---|---|---|---|---|
| 400 | 298 | TMS | Whole cell |
Reference
Xue Kang,
Alex Kirui,
Artur Muszyński,
Malitha C. Dickwella Widanage,
Adrian Chen,
Parastoo Azadi,
Ping Wang,
Frederic Mentink-Vigier,
and Tuo Wang,
(2018). Molecular architecture of fungal cell walls revealed by solid-state NMR,
Nature Communications,
9
,2747-2758
.
doi:10.1038/s41467-018-05199-0
